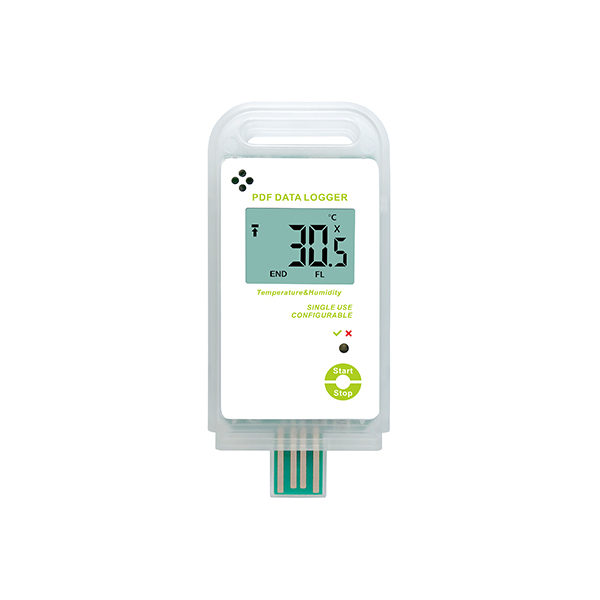

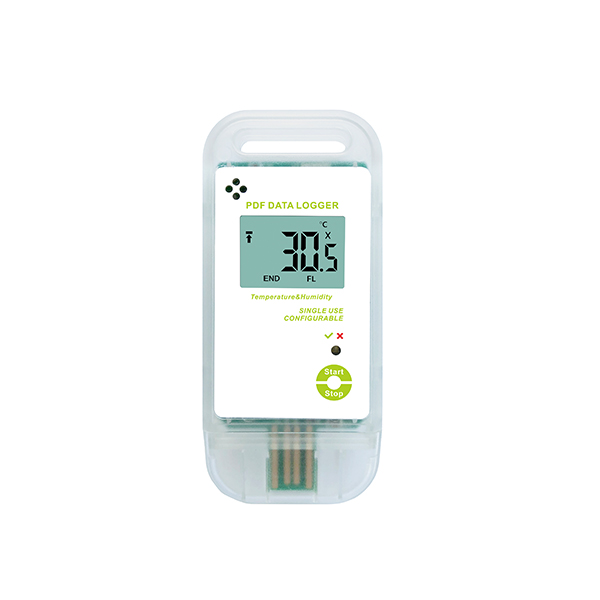

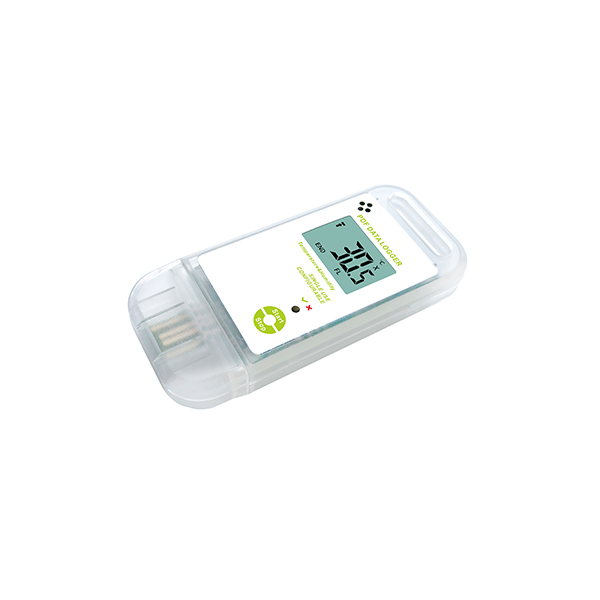

YXUP-20D Disposable PDF Temperature Humidity Data Logger USB Cold Chain Monitor Recorder
Capture temperature and humidity for pharmaceutical, food and refrigerated-logistics shipments. This disposable USB logger generates encrypted PDF reports and supports configurable recording and alarms.
Description
The YXUP-20D disposable temperature and humidity data logger tracks shipment conditions for pharmaceuticals, fresh food and refrigerated logistics. It automatically generates encrypted PDF reports after recording and supports manual markers, adjustable sampling and cumulative over-limit alarms for cargo traceability.
Specifications
| Model | YXUP-20D |
|---|---|
| Measuring Parameters | Temperature and humidity |
| Temperature Range | -30 to 70 C |
| Humidity Range | 0 to 100%RH |
| Temperature Accuracy | +/- 0.3 C (-10 to 65 C); +/- 0.5 C other ranges |
| Humidity Accuracy | +/- 3%RH (10 to 90%RH at 25 C); +/- 4%RH other ranges |
| Resolution | Temperature 0.1 C; humidity 0.1%RH |
| Storage Capacity | 17,280 groups per channel |
| Sampling Interval | 10 seconds to 18 hours adjustable |
| Marker Points | Maximum 6 data markers |
| Alarm | Single/cumulative temperature and humidity alarm; 0-960 minute delay |
| Report | Native PDF output; CSV/XLS/TXT/DLG via PC software |
| Power | Non-replaceable CR2032 lithium battery |
| Protection Class | IP40 |
| Size and Weight | 85 x 38 x 12 mm; approx. 20 g |
| Certification | CE, RoHS, EN12830 |
| Shelf Life | 2 years |
Reviews (0)
Downloads
Product documents and supporting resources.
- YXUP Series Technical Datasheet Download PDF
- YXUP Series User Manual Download PDF
