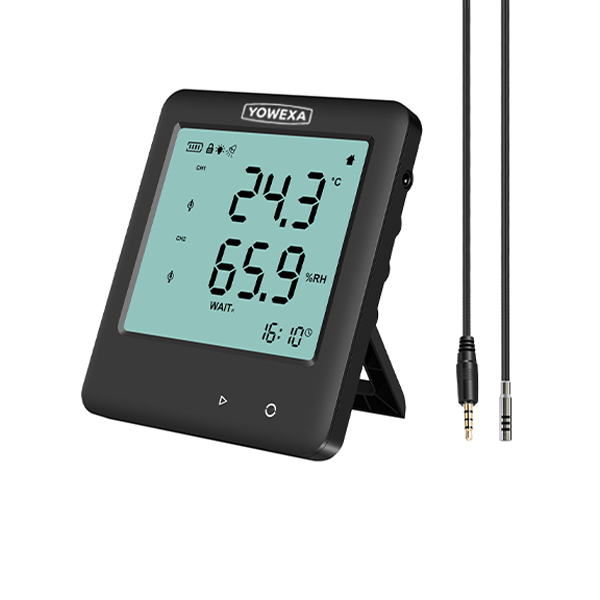

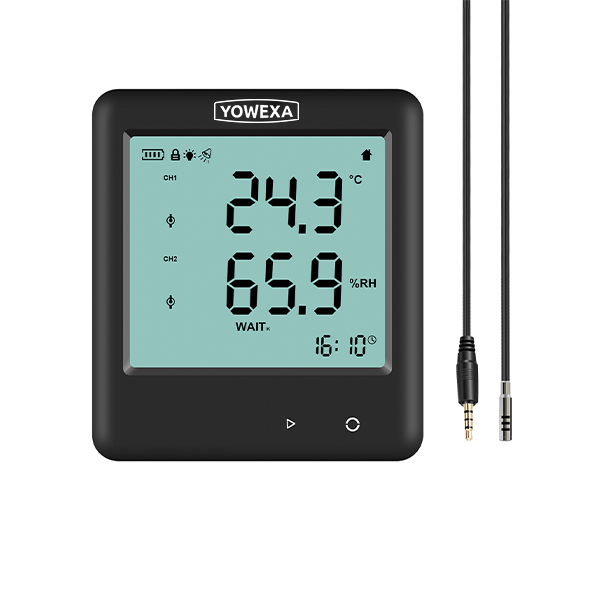

YDP-20E Professional Temp Humidity Data Logger External Detachable Probe PDF Recorder
Record temperature and humidity with a detachable external probe, large backlit display and alarm functions. Built for labs, industrial sites and cold storage monitoring with driver-free PDF export.
Description
The YDP-20E professional temperature and humidity data logger uses a detachable external probe for industrial, laboratory and cold-storage multi-point monitoring. A 3.9-inch backlit LCD, max/min/average statistics, over-limit alarm and USB PDF export help make long-term environmental recording straightforward.
Specifications
| Model | YDP-20E |
|---|---|
| Measuring | Temperature and humidity with external detachable probe |
| Temperature Range | -40 to 125 C |
| Humidity Range | 0 to 100%RH, non-condensing |
| Temperature Accuracy | +/- 0.3 C (-10 to 65 C); +/- 0.5 C other ranges |
| Humidity Accuracy | +/- 3%RH (10 to 90%RH at 25 C); +/- 4%RH other ranges |
| Resolution | Temperature 0.1 C; humidity 0.1%RH |
| Storage | Optional 25,920 or 500,000 readings |
| Screen | 3.9-inch backlit dot-matrix LCD with touch buttons |
| Core Functions | Max/min/average display, over-limit alarm, multi-point calibration, data retention after power off |
| Export Format | Encrypted PDF, TXT, CSV, XLS and DLG |
| Power | 3 AAA batteries or USB 5V power |
| Protection Class | IP20 |
| Dimensions and Weight | 108 x 96 x 20 mm; approx. 120 g without battery and probe |
| Warranty | 12 months |
Reviews (0)
Downloads
Product documents and supporting resources.
- YDP-20E Technical Datasheet Download PDF
- YDP-20E User Manual Download PDF
