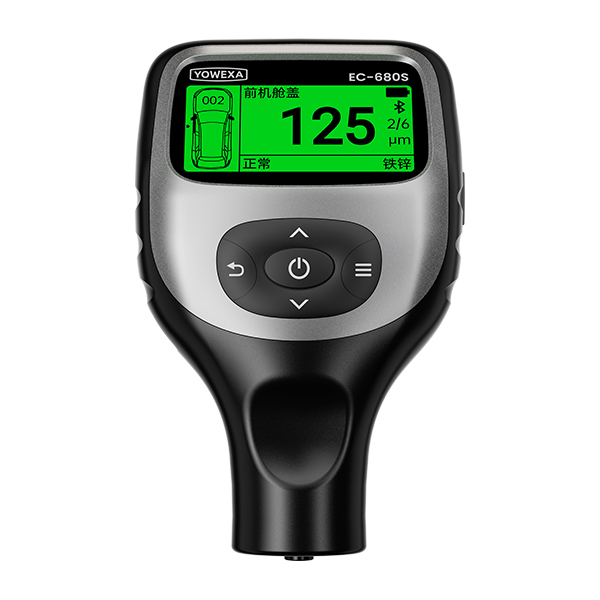

EC-680S Vibration Alert Automotive Paint Thickness Gauge 0-5000μm Bluetooth Fe/NFe Coating Tester
Description
The EC-680S vibration alert automotive paint thickness gauge delivers ultra-wide 0-5000μm range dual-layer coating measurement via magnetic & eddy current probe. This smart coating thickness tester supports Bluetooth APP real-time data sync, vibration over-limit alarm and multi-color backlight screen for intuitive car paint detection. The handheld paint meter stores mass measurement records, exports PDF reports via Type-C USB and recognizes galvanized & putty layer for auto repair and hardware plating inspection.
Specifications
| Measuring Principle | Fe magnetic induction / NFe eddy current |
|---|---|
| Measuring Range | 0~5000μm |
| Accuracy | ±(2% reading+1μm) (0~2000μm); ±3%+2μm (2001~3000μm); ±5%+2μm (>3000μm) |
| Resolution | 0.1/1/10μm menu adjustable |
| Units | μm, mm, mil |
| Unique Feature | Vibration over-limit alarm (EC-680S exclusive) |
| Identifications | Galvanized iron, iron powder putty detection |
| Response Time | ＜0.5s |
| Display | Dot matrix LCD, multi-color backlight, one-click screen flip |
| Connectivity | Bluetooth mobile APP, Type-C USB data export & firmware upgrade |
| Probe | Ruby wear-resistant integrated probe |
| Min Test Spec | Convex 5mm, concave 25mm, test diameter 15mm |
| Min Substrate Thickness | Fe 0.20mm, NFe 0.03mm |
| Power | 2×1.5V AAA alkaline batteries |
| Functions | Auto power off, battery protection, max/min/avg statistics |
| Operating Temp | -10~50℃; Storage Temp: -20~60℃ |
| IP40, ABS housing, Size 1086728mm, Weight ~64g |
