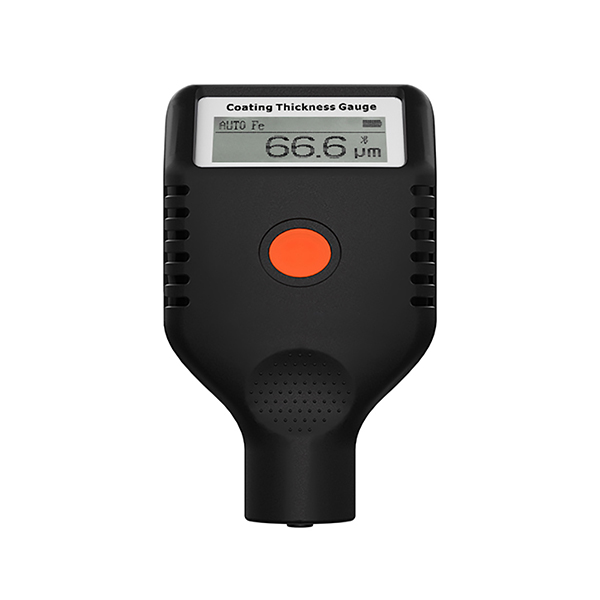

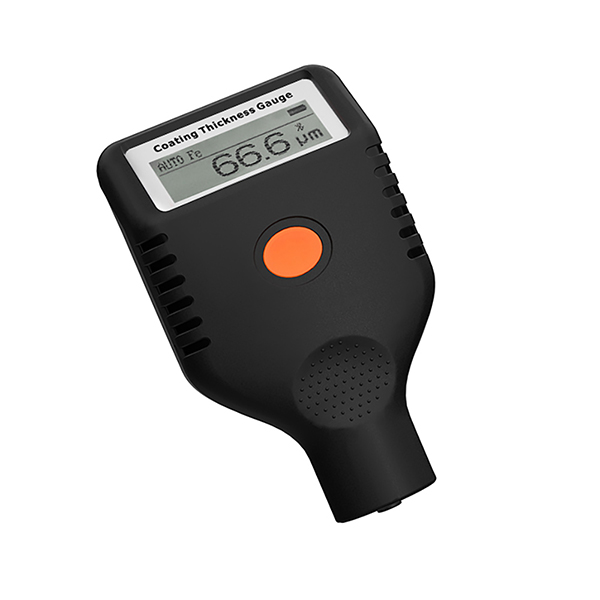

EC-600S-P Bluetooth Automotive Paint Thickness Gauge 0-3000μm Fe/NFe Coating Meter Single Button
Description
The EC-600S-P Bluetooth paint thickness gauge uses dual magnetic & eddy current sensor for non-destructive automotive coating inspection. This lightweight car coating meter features single-button simple operation, real-time Bluetooth APP data transmission and built-in storage for auto recording thickness data. The portable paint detector identifies galvanized steel and putty filler with colored backlight alert, supporting USB data export and firmware upgrade for second-hand car evaluation and metal anti-rust coating testing.
Specifications
| Measuring Principle | Fe magnetic induction, NFe eddy current |
|---|---|
| Measuring Range | 0~3000μm |
| Accuracy | ±(2% reading+1μm) (0~2000μm); ±(3% reading+2μm) (2001~3000μm) |
| Resolution | 0.1μm (0~99.9μm); 1μm (≥100μm) |
| Units | μm, mm, mil |

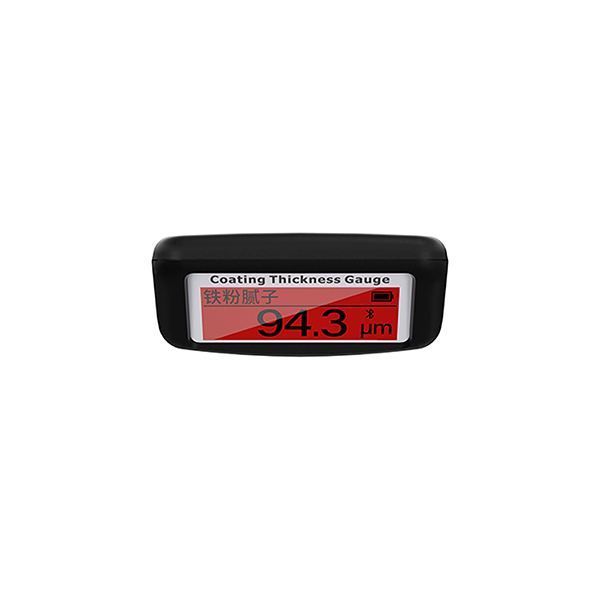

| Ident Function | Galvanized iron (blue backlight), iron putty (red alarm) |
| Response Time | ＜0.5s |
| Display | Dot matrix LCD screen |
| Connectivity | Bluetooth mobile APP, USB data transfer & firmware upgrade |
| Calibration | Zero calibration |

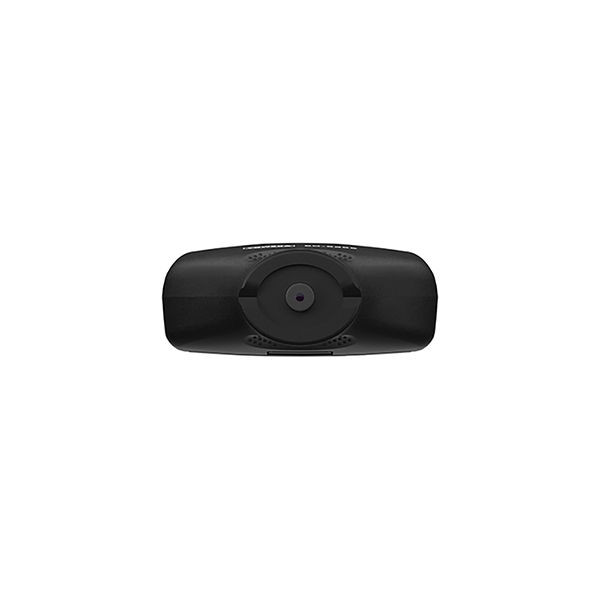

| Probe | Ruby wear-resistant tip, contact force 0.5~1.2N |
| Min Test Spec | Convex 5mm, concave 25mm, test diameter 15mm |
| Min Substrate | Fe 0.20mm, NFe 0.03mm |
| Power | 2×1.5V AAA / 1.2V rechargeable batteries |
| Functions | Auto shutdown, battery protection, max/min/avg/count statistics |
| Operating Temp | -10~+50℃; Storage Temp: -20~+60℃ |
| IP Grade | IP40, ABS shell, Size 1036227mm, Weight ~60g |
