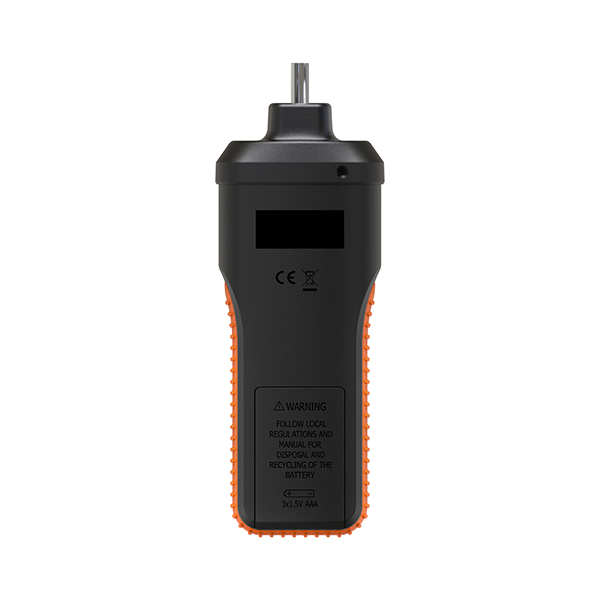

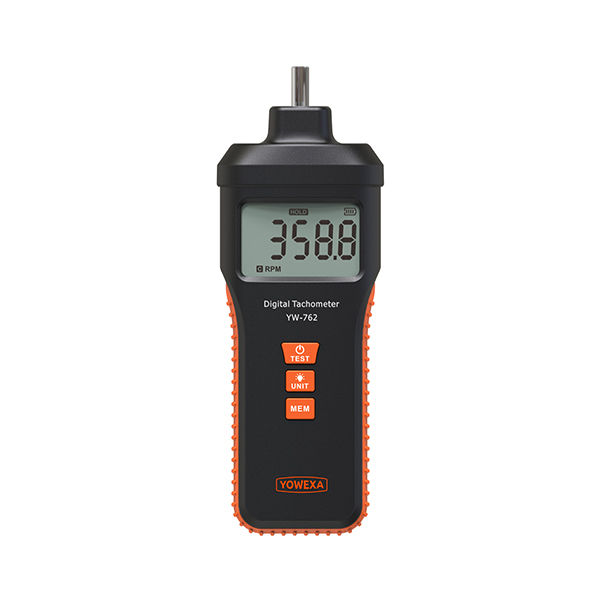

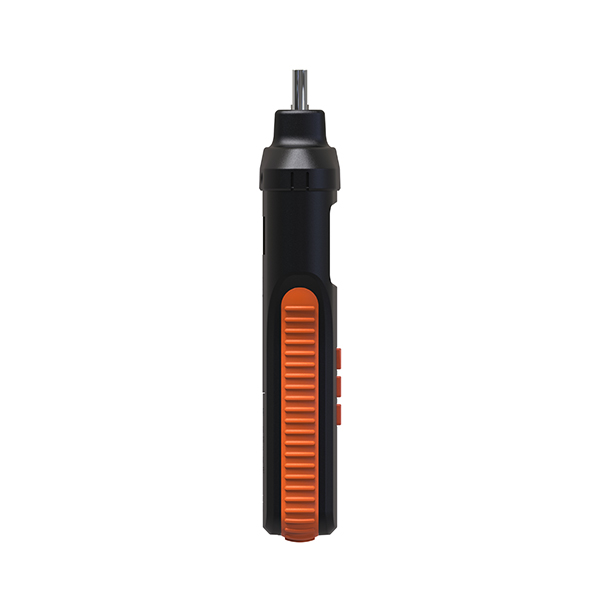

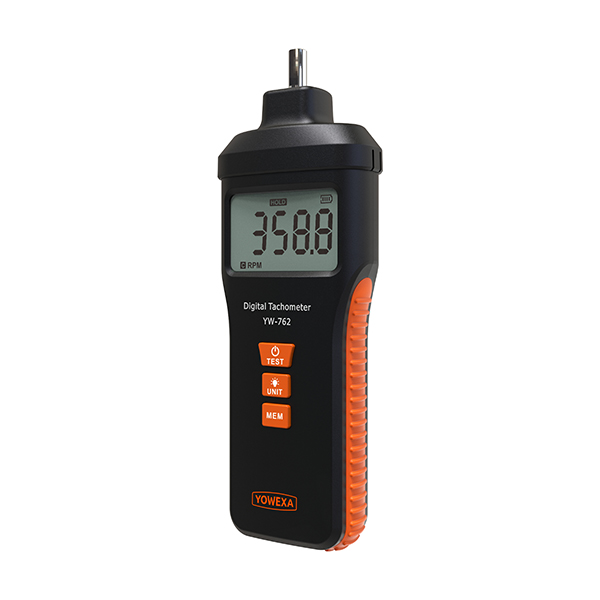

YW-762 Intelligent Digital Tachometer Photoelectric Contact RPM Meter with Data Memory Function
Measure rotation, line speed and flicker frequency with photoelectric and contact modes, automatic data memory and backlit industrial display.
Description
Measure rotation, line speed and flicker frequency with photoelectric and contact modes, automatic data memory and backlit industrial display.
Specifications
| Photoelectric Speed | 9.0 to 99999 RPM |
|---|---|
| Contact Speed | 1.0 to 19999 RPM |
| Line Velocity | 0.10 to 1999.9 m/min |
| Flicker Frequency | 0.1 to 6000 Hz |
| Photoelectric Distance | 50 to 500 mm |
| Functions | Current/max/min memory, hold, auto range and backlight |
| Power | 3 AAA batteries |
| Protection Class | IP43 |
Reviews (0)
Downloads
Product documents and supporting resources.
- YW-762 / 762F / 762J Technical Datasheet Download PDF
- YW-762 / 762F / 762J User Manual Download PDF
