YW-751 Wire Tracker Network Cable Finder Telephone Line Tester with Adjustable Sensitivity
Description

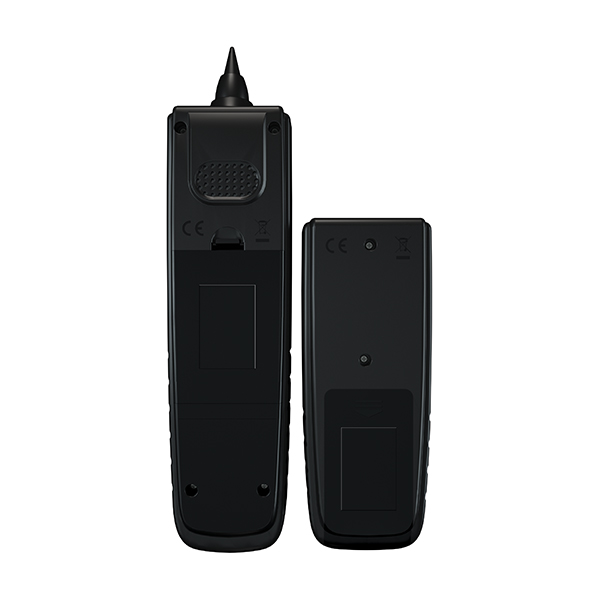

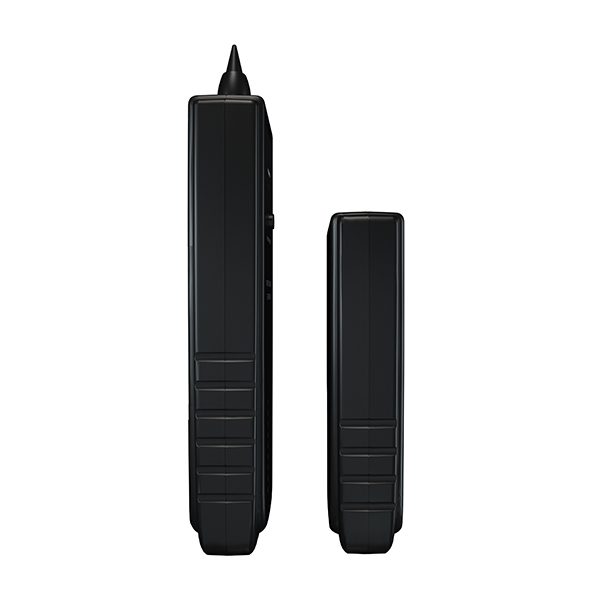

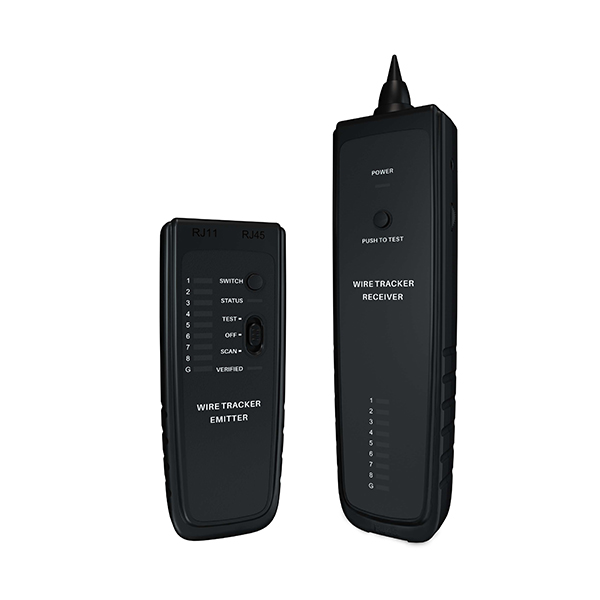

The YW-751 wire tracker consists of transmitter and receiver for network cable, telephone line and power cable locating in structured wiring and weak current system installation. This professional cable finder supports cable sequence, open/short circuit verification, DC polarity detection and shield detection with adjustable sensitivity for complex cable bundles. The network wire tracker features headphone support, two proofreading speeds and low battery prompt for efficient on-site cable maintenance and troubleshooting.
Specifications
| Model Variants | YW-751 (analog signal), YW-751-P (digital signal with live line support) |
|---|---|
| Signal Type | Analog signal (YW-751) / Digital signal (YW-751-P) |
| Live Cable Testing | No (YW-751) / Yes (YW-751-P) |
| Supported Cable Types | Network lines (RJ45), telephone lines (RJ11), various power cables |
| Core Functions | |
| Multiple cable finding (network, telephone, power cables) | |
| Cable sequence / open circuit / short circuit proofreading | |
| Path and continuity testing | |
| DC level positive/negative detection | |
| Shield detection (LED G indicator) | |
| Adjustable hunting sensitivity | |
| Two proofreading speed modes | |
| Additional Features | Headphone compatible, low battery prompt |
| Power Supply | 2 × 9V square batteries |
| Protection Class | IP40 |
| Housing Material | ABS |
| Operating Environment | Temperature: 0~40℃; Humidity: 20~75%RH |
| Dimensions | Emitter: 125×49×27mm; Receiver: 193×47×28mm |
| Weight | Emitter: ~68g; Receiver: ~90g (without batteries) |
Reviews (0)
Downloads
Product documents and supporting resources.
- 028-yw-751 series user manual v2.0.1 Download PDF
- 020-yw-751 series datasheet v1.2.3 Download PDF
