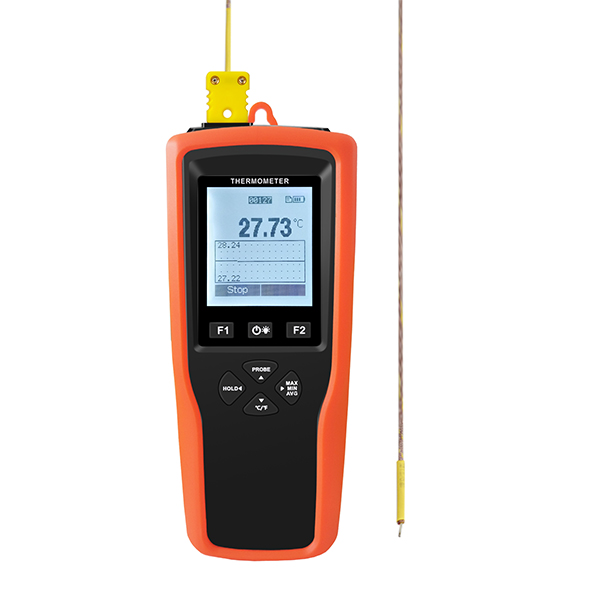

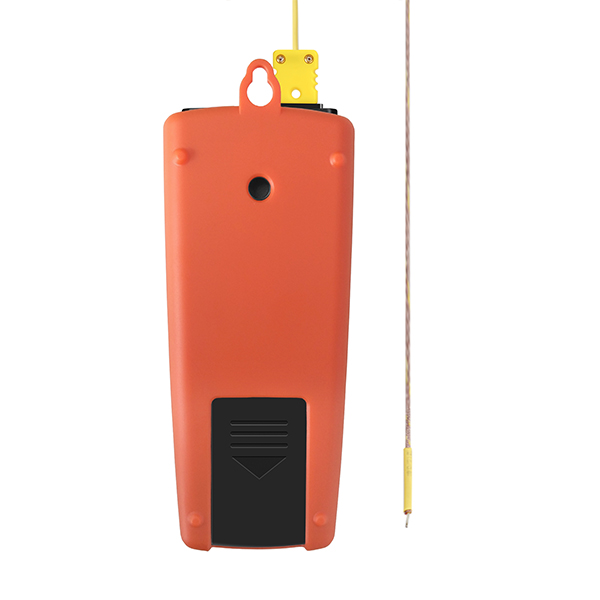

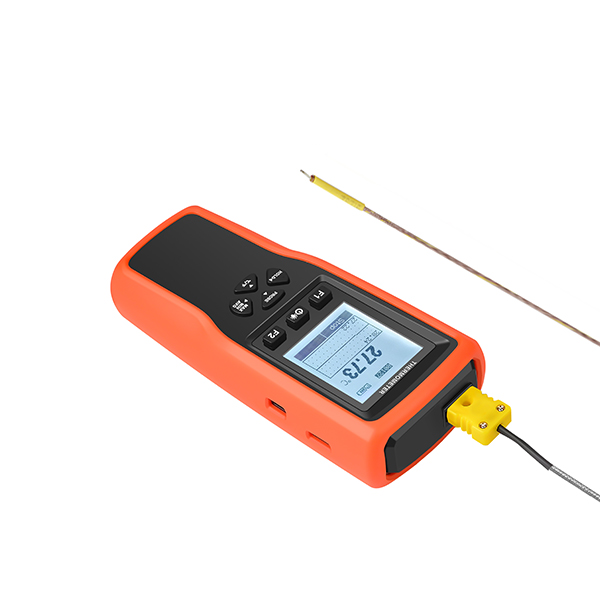

YET-610L High Accuracy Thermocouple Temperature Data Logger K T J Type 20000 Groups Recording
Description
The YET-610L high-precision thermocouple temperature data logger measures temperature via K/T/J type thermocouple probes with -200~1370℃ wide range for boiler monitoring, metal processing, concrete pouring and industrial high-temperature applications. This single-channel thermocouple thermometer features 0.01℃ resolution, multi-point calibration (up to ±0.1℃ accuracy), 2 times/second sampling rate and 20000-group data recording with adjustable interval. The industrial temperature logger includes temperature curve display, over-limit buzzer alarm, max/min/average statistics and 3 file export formats (TXT/CSV/XLS) for high-temperature process monitoring.
Specifications
| Channels | 1 channel |
|---|---|
| Supported Probes | K, T, J type thermocouple |
| Measurement Range | |
| Type K | -200~1370℃ |
| Type T | -200~400℃ |
| Type J | -200~1200℃ |
| Resolution | 0.01℃ (-200.00~999.99℃); 0.1℃ (1000.0~1370.0℃) |
| Accuracy | ±(0.3%|t|+0.40)℃ factory; up to ±0.1℃ after point calibration |
| Sampling Rate | 2 times/second |
| Data Recording | Yes, 20000 groups capacity |
| Sampling Interval | Adjustable from 1 to 86399 seconds |
| Export File Formats | TXT, CSV, XLS |
| Calibration | Multi-point user calibration |
| Display Functions | |
| Temperature change curve graph | |
| Max/min/average data display | |
| Temperature over-limit buzzer alarm | |
| Data hold function | |
| Units | ℃ / ℉ switchable |
| Display | Large dot matrix LCD with high-quality backlight |
| Power Supply | 3 × 1.5V AAA dry cell batteries / 3 × 1.2V AAA rechargeable batteries |
| Battery Life | ~190 hours (continuous operation, backlight off, 1200mAh, 25℃) |
| Protection Class | IP52 |
| Operating Temperature | -10~50℃ (non-condensing) |
| Storage Temperature | -20~60℃ (without battery) |
| Dimensions | 174 × 73 × 40mm |
| Weight | Approx. 198g (excluding batteries and probe) |
| Warranty | 12 months |
