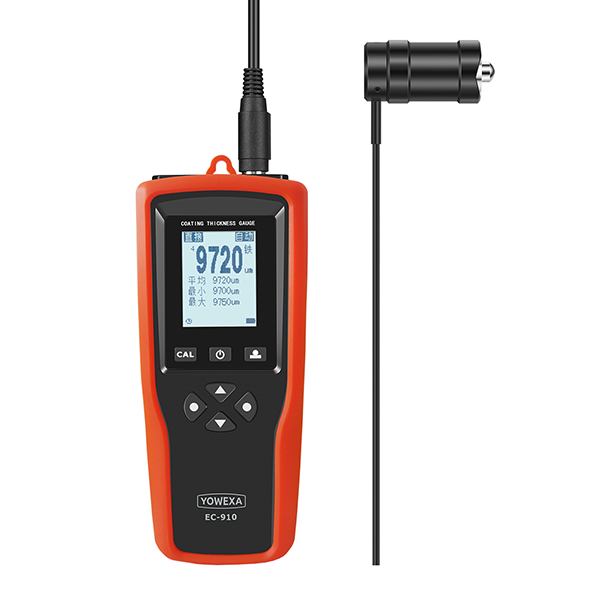

EC-910 Large Range Coating Thickness Gauge Separable Probe Non-Destructive Paint Film Thickness Meter for Metal Anti-Corrosion Coating Test
Measure thick metal-surface coatings without damage using interchangeable ruby probes, a 20,000 um maximum range, 2,000-record storage and USB export.
Description
The EC-910 coating thickness gauge performs non-destructive measurement of metal-surface coatings with interchangeable wear-resistant ruby probes. It supports electromagnetic induction and eddy-current testing, records up to 2,000 measurements and provides mean/min/max statistics with red-backlight alarms for anti-rust coatings, pipeline insulation and hardware inspection.
Specifications
| Measurement Principle | Electromagnetic induction and eddy current |
|---|---|
| Optional Probes | F10, F20, N10 and N20 separable ruby probes |
| Maximum Range | 0 to 20,000 um |
| Resolution | As low as 1 um |
| Data and Display | 2,000 records; mean/min/max/standard deviation; red backlight alarm |
| Calibration and Mode | Zero and point calibration; single and continuous modes; 2 readings/s |
| Data Transfer | USB export to computer |
| Protection | IP40; ABS main body; POM probe shell |
| Power and Environment | AAA batteries; -10 to 50 C operating temperature |
| Applications | Anti-rust treatment, pipeline insulation, hardware processing and coating detection |
Reviews (0)
Downloads
Product documents and supporting resources.
- EC-910 Technical Datasheet Download PDF
