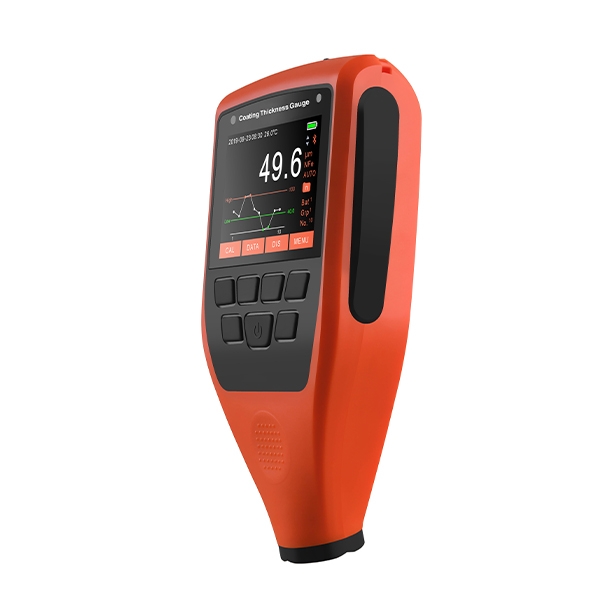

EC-777 Integrated Probe Coating Thickness Gauge with Bluetooth & 2.4 Inch Color Screen
Description
The EC-777 coating thickness gauge is a high-precision device that non-destructively measures non-conductive coatings on metal surfaces. This integrated probe coating thickness gauge features 0.1μm high resolution, Bluetooth APP connection, and 2.4 inch color screen for intuitive data viewing. The coating thickness gauge supports zero and multi-point calibration, with strong anti-interference performance for stable operation in complex electromagnetic fields, ideal for car paint detection, electroplating, and metal anti-rust treatment scenarios.
Specifications
| Measurement Principle | Fe: Magnetic induction; NFe: Eddy currents |
|---|---|
| Probe Position | Internal integrated probe |
| Measurement Range | FN2.0 probe: 0~2000μm; FN3.0 probe: 0~3000μm; F5.0N3.0 probe: Fe: 0~5000μm, NFe: 0~3000μm |
| Accuracy | ±(2% reading+1μm) (≤2000μm); ±(3% reading+2μm) (2001~3000μm); ±(5% reading+2μm) (>3000μm) |
| Resolution | 0.1μm(0~99.9μm); 1μm(≥100μm) |
| Measurement Units | μm, mm, mil, inch |
| Calibration | Zero calibration and multi-point calibration |
| Statistic Functions | Number of readings, Max, Min, Mean, sample standard deviation, coefficient of variation, number below/above limit |

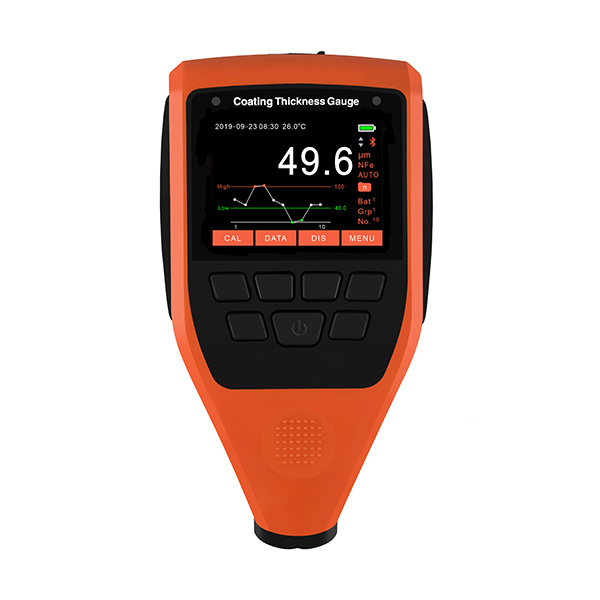

| Display | 2.4 inch color screen, support curve/bar chart/trend chart display |

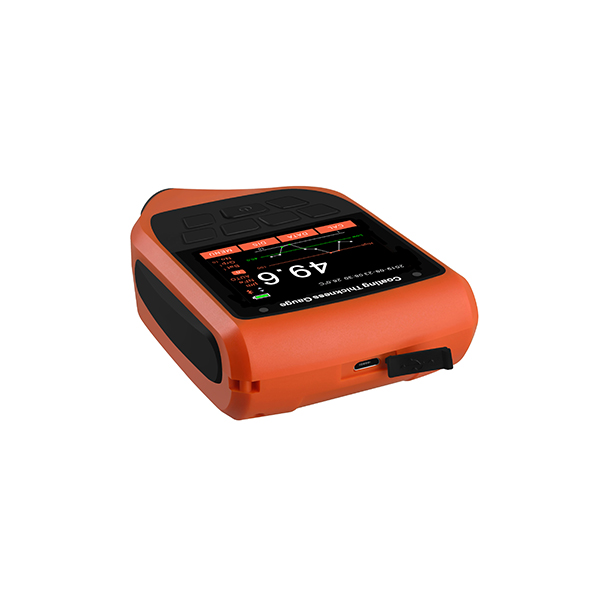

| Connectivity | Bluetooth & APP support, USB data transfer |
| Storage Capacity | 10*13*10 measurement data |
| Probe Trigger Mode | Mechanical trigger, trigger force: 0.4~0.8N |
| Minimum Measuring Area | Diameter 15mm |
| Minimum Substrate Thickness | Fe: 0.20mm; NFe: 0.03mm |
| Maximum Measuring Speed | 2 readings/s |
| Operating Environment | Temperature: -10~+50℃; Humidity: 20~90%RH (Non-condensation) |

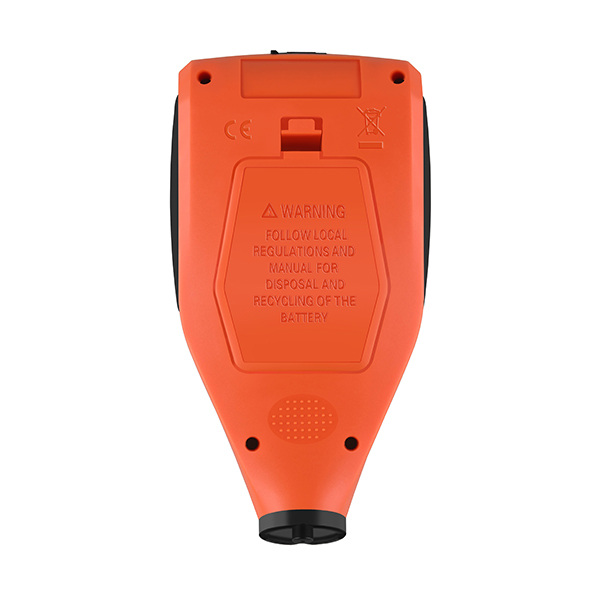

| Power Supply | 2 pcs 1.5V AA alkaline batteries or 2 pcs 1.2V AA Ni-MH batteries |
| Protection Class | IP40 |
| Housing Material | ABS |
| Dimensions | 146*76*32mm |
| Weight | About 137g (No battery) |
